What Is an Alloy Casting Foundry?
When people ask me what an alloy casting foundry actually is, I explain it simply: it’s a specialized facility where we melt metal alloys (not just plain steel or iron) and pour them into molds to create custom alloy castings for real-world parts—valves, pump bodies, turbine components, brackets, housings, and more.
Instead of working with a single metal, an alloy casting foundry focuses on engineered metal alloy casting: stainless steels, aluminum alloys, bronzes, nickel-based alloys, cobalt alloys, and high-alloy steels designed for specific performance—corrosion resistance, heat resistance, strength, or wear resistance.
What an Alloy Casting Foundry Does Day-to-Day
On a typical day, an industrial alloy casting foundry like mine is doing a lot more than just “pouring metal”:
- Reviewing drawings and 3D models to confirm requirements, tolerances, and alloy selection
- Designing patterns and tooling for sand casting, investment casting, or other processes
- Preparing molds and cores so alloy metal can flow correctly and fill all features
- Melting alloys in induction or gas furnaces, tightly controlling chemistry and temperature
- Pouring castings safely using proven gating and riser systems to minimize defects
- Cleaning, cutting, and prepping raw castings for heat treatment or machining
- Inspecting quality with dimensional checks and, when needed, non-destructive testing
Every step is built around repeatable, industrial foundry services that deliver reliable, castable alloy components for demanding applications.
How Alloy Casting Foundries Differ from Standard Metal Foundries
Not every metal foundry is set up to handle complex metal alloy casting. An alloy casting foundry is different from a basic gray iron or low-carbon steel foundry in several key ways:
- Wider alloy range
- Stainless steel castings
- Aluminum alloy casting
- Bronze and copper alloy castings
- High alloy steel, nickel-based, and cobalt alloy castings
- Stricter chemistry control
- Closer monitoring of alloying elements
- More frequent spectrographic analysis and heat records
- Higher performance requirements
- Heat resistant alloys for high-temperature service
- Corrosion resistant castings for chemicals, seawater, and aggressive media
- Tighter process control and testing
- More advanced foundry quality control
- Regular non-destructive testing and mechanical property validation
If you need precision metal casting in stainless, nickel, high-alloy steel, or aluminum for critical equipment, you typically need an alloy-focused foundry, not a general-purpose jobbing shop.
Core Steps From Pattern to Finished Alloy Casting
Even though alloys and processes vary, the core workflow in an alloy casting foundry usually follows the same structure:
- Pattern and tooling
- Build or adapt patterns for sand casting, investment casting, or shell mold casting
- Design gating and risers to feed complex alloy sections
- Mold and core making
- Prepare sand molds, ceramic shells, or permanent molds
- Install cores to create internal passages and cavities
- Melting and pouring
- Melt the selected alloy to the right temperature
- Verify chemistry, then pour into prepared molds
- Cooling and shakeout
- Allow castings to solidify under controlled conditions
- Remove sand or shell and separate castings from the gating system
- Cleaning and finishing
- Shot blast, grind, and remove excess material
- Prepare castings for heat treatment and machining
From RFQ to a finished alloy casting, each step is engineered to control quality, reduce defects, and deliver near net shape casting that cuts down on machining time and total cost.
How Alloy Casting Works in a Foundry
Running an alloy casting foundry is all about controlling every step from pattern to finished part so you get consistent, high‑quality metal alloy castings every time.
Pattern Design and Tooling for Alloy Castings
We start with pattern design and tooling based on your 2D drawings or 3D models.
- We build patterns in metal, plastic, or wood depending on volume and accuracy needs.
- Shrinkage, draft angles, and machining stock are built into the design from day one.
- For tighter specs or complex alloys, we’ll often adjust geometry with DFM to make sure the part actually fills and solidifies the way you expect.
Molding, Cores, and Gating for Alloy Flow
Next, we design the molds, cores, and gating systems so the alloy flows clean and controlled.
- Sand molds, shell molds, or ceramic molds are chosen based on size and surface finish.
- Cores form internal passages (like pump and valve cavities) and must be strong but break out clean.
- Gating and risers are engineered to reduce turbulence, avoid gas entrapment, and feed solidification so you don’t end up with shrink defects.
Melting and Pouring Alloy Metals Safely
In the melt deck, we handle the metal alloy casting process under tight chemistry control.
- We melt stainless, aluminum, bronze, high alloy steel, nickel, and cobalt alloys in induction or gas-fired furnaces.
- Spectrochemical analysis verifies alloy composition before tapping.
- Pouring temperature, ladle treatment, and pouring speed are set to match the alloy and casting process to avoid inclusions and cold shuts.
For deeper alloy options and casting methods, I break them down in this practical casting alloy guide.
Cooling, Shakeout, and Cleaning the Castings
After pouring, the castings cool and solidify in the mold.
- Controlled cooling cuts down on cracking, distortion, and residual stress.
- Once solid, we shake out the molds, remove sand or shells, and cut off gates and risers.
- Shot blasting, grinding, and surface cleaning get the part ready for inspection and machining.
Heat Treatment, Machining, and Final Inspection
To hit final properties, we run parts through heat treatment, machining, and inspection.
- Normalizing, quenching and tempering, or solution/age hardening are applied based on your alloy and spec.
- CNC machining finishes critical surfaces, threads, and tight-tolerance features for true near-net-shape parts.
- Dimensional checks, visual inspection, and NDT (like PT or MT) close the loop before shipment so your custom alloy castings arrive ready to drop into your build.
Main Alloy Casting Processes Used in Foundries
In our alloy casting foundry, we match the casting process to your part’s size, tolerance, and volume so you don’t overpay or compromise on performance.
Sand Casting for Large and Complex Alloy Parts
Sand casting is the go-to for:
- Large, heavy, or low-volume parts
- Complex shapes like pump bodies, valve housings, and mining components
We use advanced molding sands and core systems to handle stainless steel castings, high alloy steel, bronze, and heat resistant alloys with solid dimensional control and good mechanical properties. It’s a cost-effective option when you need flexibility and don’t need ultra-tight tolerances.
Investment Casting for Precision Alloy Components
Investment casting (lost wax) is ideal when you need:
- High-precision metal alloy casting
- Thin walls, fine details, and tighter tolerances
- Near-net shape parts that reduce machining
Our precision casting services deliver accurate stainless, aluminum, nickel-based, and cobalt alloy castings with clean surfaces and consistent quality, making it a strong fit for aerospace, energy, and high-performance industrial parts. You can see how we handle this in our dedicated precision investment casting process and services.
Shell Mold Casting for Better Surface and Accuracy
Shell mold casting sits between sand and investment casting:
- Better surface finish and accuracy than conventional sand
- Good for medium-volume industrial foundry services
- Works well for valve and pump castings, brackets, and gear housings
It’s a strong option when you want tighter tolerances and smoother surfaces without the full cost of investment casting.
Permanent Mold and Die Casting for High-Volume Alloys
For high-volume and repeatable production, we turn to:
- Permanent mold casting for aluminum and some copper alloys
- Die casting for high-speed, high-volume aluminum alloy casting and other die casting alloys
These processes deliver:
- Excellent dimensional repeatability
- Good surface finish
- Lower piece price at scale
They are a fit for automotive alloy castings, housings, and structural components where tooling investment is justified by volume.
Centrifugal Casting for Tubes, Sleeves, and Rings
The centrifugal casting process is our choice when:
- You need tubular shapes like bushings, sleeves, rings, and pipe sections
- You want very dense, low-defect alloy structures
By spinning the mold at high speed, the molten metal is forced outward, producing:
- High integrity, low-porosity castings
- Excellent mechanical properties for wear parts and pressure-retaining components
Across all these processes, we focus on pairing the right alloy casting foundry services with the right alloy grade so you get reliable, repeatable parts that work in real-world U.S. applications.
Common Alloy Types in an Alloy Casting Foundry
In our alloy casting foundry, I match the alloy to the job: environment, load, temperature, and budget. Here’s how the main alloy families break down for U.S. industrial customers.
Stainless Steel Alloy Castings (Corrosion Resistance)
Stainless steel castings are my go‑to for corrosion resistant castings in water, chemicals, and food-grade service.
Typical use cases:
- Pumps, valves, and fittings in water treatment and chemical plants
- Food and pharma equipment where hygiene and cleanability matter
- Outdoor and marine hardware that must resist rust
We often pair custom stainless compositions with alloy steel and stainless cast products when you need a mix of strength, corrosion resistance, and weldability.
Heat Resistant Alloy Castings (High Temperature Service)
For high heat, I move to heat resistant alloys based on special stainless or high alloy steels.
Best fit when you need:
- Components in furnaces, kilns, heat treat fixtures
- Parts in power generation, petrochemical, and refinery service
- Castings exposed to thermal cycling and oxidation
Aluminum Alloy Castings (Lightweight Parts)
Aluminum alloy casting is ideal when weight and machinability drive the design.
You’ll see these in:
- Automotive alloy castings (housings, brackets, covers)
- Aerospace and defense structures where weight reduction saves fuel
- Electronics and enclosures that need good strength-to-weight and conductivity
Bronze and Copper Alloy Castings (Wear & Marine)
Bronze and copper alloy castings shine where wear, sliding contact, and seawater are involved.
Typical uses:
- Bushings, bearings, and wear plates
- Propellers, marine hardware, seawater valve and pump castings
- Components needing good lubricity and galling resistance
High Alloy Steel Castings (Heavy-Duty Loads)
High alloy steel castings are what I use when you need serious strength, impact resistance, and toughness in rough service.
Ideal for:
- Mining, cement, construction, and off-highway equipment
- Crusher parts, mill liners, gears, and heavy brackets
- High‑load structural and safety-critical components
We also supply custom alloy steel flanges when you need cast, machined, and ready‑to‑install pressure components.
Nickel & Cobalt Based Alloy Castings (Extreme Conditions)
Nickel based alloy castings and cobalt alloy castings are reserved for the most extreme conditions.
Use them when you need:
- High temperature strength in turbines, hot gas paths, and exhaust systems
- Severe corrosion resistance in acids, chlorides, and high‑temperature oxidizing atmospheres
- Wear- and heat-resistant components in aerospace and energy
For ultra‑demanding applications, we build around nickel- and cobalt‑containing high‑temperature alloys similar to our chromium‑cobalt‑molybdenum solutions for medical and high-wear use.
Design & Engineering for Alloy Cast Parts
Smart design is what makes or breaks an alloy casting foundry project. When you bring us a part, we’re looking at performance, cost, and how cleanly it will cast in your chosen alloy.
Design rules for castable alloy components
For metal alloy casting, I focus on:
- Consistent sections – avoid big jumps in thickness to reduce shrink and cracks.
- Smooth load paths – generous transitions instead of sharp corners.
- Near net shape – cast as close to final geometry as possible to cut machining time and cost.
If you’re not sure what’s “castable,” we’ll review your model and suggest quick changes that keep your function but make it easier to pour and solidify.
Wall thickness, draft angles, and fillets
To help alloy flow and release from the mold:
- Wall thickness
- Steel / stainless: usually 0.18–0.25 in minimum (sand), thinner for investment casting.
- Aluminum: can go thinner but still keep even walls where possible.
- Draft angles
- Sand casting: 1–3° draft on most vertical faces.
- Investment / shell: 0.5–1° can work on many features.
- Fillets & radii
- Replace sharp corners with 0.06–0.12 in radii to improve flow and reduce stress.
These rules change with process and alloy, whether we’re running stainless steel castings, aluminum alloy casting, or bronze alloy parts.
Tolerances and surface finish
Every alloy casting foundry service has a realistic tolerance window:
- Sand casting – coarser: good for structural and heavy-duty parts.
- Investment casting / shell mold casting – tighter tolerances and better surface finish, ideal for precision metal casting.
- Die casting / permanent mold – best repeatability for high volumes.
We’ll align tolerances to what the process can truly hold, then use machining only where it actually matters.
Working with a foundry engineer on DFM
DFM (design for manufacturability) is where we cut risk and cost:
- We review your 3D models and drawings for gating, shrink, and core requirements.
- We suggest small geometry tweaks that improve yield without hurting function.
- We help you pick the right alloy selection for casting based on corrosion, temperature, or strength targets.
Bring us in early, and we’ll treat your part like it’s our own—engineering it to run smoothly in the foundry and perform reliably in the field.
Quality Control in an Alloy Casting Foundry
In our alloy casting foundry, quality control isn’t a department—it’s the whole operation. Every stainless, aluminum, bronze, or high-alloy heat we pour is locked into a repeatable, traceable process from raw metal to final inspection.
Material Certification & Alloy Chemistry Control
We start with certified raw materials only. Every heat is:
- Backed by mill certs and full heat numbers
- Checked with spectrochemical analysis to verify alloy chemistry
- Adjusted in the furnace as needed to hit tight chemistry windows for strength, corrosion resistance, and heat resistance
If you’re running critical corrosion resistant castings or heat resistant alloys, this chemistry control is what keeps performance consistent from batch to batch.
Dimensional Inspection & Measurement Tools
To keep your custom alloy castings on size, we use:
- Calipers, micrometers, bore gages, and height gages for routine checks
- CMM (coordinate measuring machine) when you need tighter casting tolerances
- Custom gauges and fixtures for repeat, high-volume dimensions
This is how we keep valve bodies, pump housings, and precision metal casting projects within spec without chasing dimensions with extra machining.
Non-Destructive Testing (UT, RT, PT, MT)
For critical metal alloy casting work, we rely on NDT to confirm internal and surface soundness:
- UT (Ultrasonic Testing): Finds internal flaws like shrinkage or inclusions
- RT (Radiographic Testing/X-ray): Ideal for high-spec parts in energy, aerospace, and defense
- PT (Liquid Penetrant Testing): Reveals fine surface cracks on stainless, aluminum, and bronze casting alloys
- MT (Magnetic Particle Testing): For ferrous alloys like high alloy steel and carbon steels
This level of testing is standard on safety-critical or pressure-retaining valve and pump castings.
Mechanical Testing & Microstructure
When you need verified performance, we run:
- Tensile, yield, elongation, and impact tests on separately cast or integral test bars
- Hardness testing on the casting itself
- Microstructure analysis (grain size, carbides, porosity) to confirm the heat treatment worked and the alloy will hold up in service
For demanding applications (think nickel-based or cobalt alloys in extreme environments), microstructure tells us if the casting will actually survive in the field.
Quality Standards & Certifications
To support serious industrial foundry services in the US market, we align our system with:
- ISO-style quality management for documented processes and traceability
- Customer-specific specs for automotive, power, and OEM applications
- Full material certification packages, test reports, and NDT records with each lot as needed
If your project involves bronze and copper alloy castings for marine or wear parts, we can also pair them with downstream machining similar to our bronze alloy solutions to deliver a complete, ready-to-assemble part.
This level of quality control is what makes an alloy casting foundry a reliable extension of your own production line—not just a supplier.
Performance Benefits of Alloy Casting Foundry Parts
Mechanical Strength & Toughness
Alloy casting foundry services let us dial in strength, hardness, and toughness for real-world loads, not lab conditions.
Key gains with metal alloy casting:
- High strength-to-weight (especially with aluminum alloy casting)
- Better impact toughness vs. many standard steels
- Near-net shape reduces weak points from heavy machining
| Property | Cast Alloys (Typical) | What It Means for You |
|---|---|---|
| Tensile strength | Medium to very high | Handles pressure, shock, and load |
| Toughness | Alloy-dependent, tunable | Less cracking in service |
| Fatigue performance | Improved with right design | Longer life in cyclic loading |
Corrosion & Wear Resistance
With the right custom alloy castings, we build parts that last in harsh U.S. conditions: salt, chemicals, slurry, and outdoor exposure.
- Stainless steel castings for water, food, and chemicals
- Bronze casting alloys for sliding wear and marine service
- Duplex and high alloy steels for severe corrosion or erosion
If you need both wear and corrosion resistance, we can tune alloy chemistries similar to those used in copper-nickel brake line components for balanced performance in fluid systems: copper-nickel alloy brake line machining.
Heat & Oxidation Resistance
Our heat resistant alloys and nickel based alloy castings hold strength and resist scale at high temperature.
- Reliable in furnaces, turbines, exhaust, and power-gen
- Cobalt alloy castings and Ni-based alloys for extreme thermal cycling
- Stable mechanical properties in continuous high-heat service
Cost & Lead Time vs. Forging & Machining
For many U.S. OEMs, an alloy casting foundry hits the sweet spot on cost, speed, and performance.
Compared with forging and hog-out machining:
| Factor | Alloy Casting Foundry | Forging / Full Machining |
|---|---|---|
| Tooling cost | Low–medium | Medium–high |
| Lead time | Short–medium | Often long |
| Part complexity | Very high | Limited or very expensive |
| Material waste | Low (near-net shape) | High chip volume |
You cut:
- Machining hours
- Buy-to-fly ratio
- Assembly count (by casting features in)
Sustainability & Recyclability
Alloy cast parts are a strong fit for U.S. sustainability targets.
- High scrap recovery: steel, aluminum, bronze, and nickel alloys are fully recyclable
- Less machining = less energy, coolant, and waste
- Long component life lowers total material consumption
By using optimized alloy systems (for example, A356-T6 aluminum in lightweight cast components), we combine performance and sustainability in one shot: A356-T6 aluminum alloy specs and uses.
Industries Using Alloy Casting Foundries

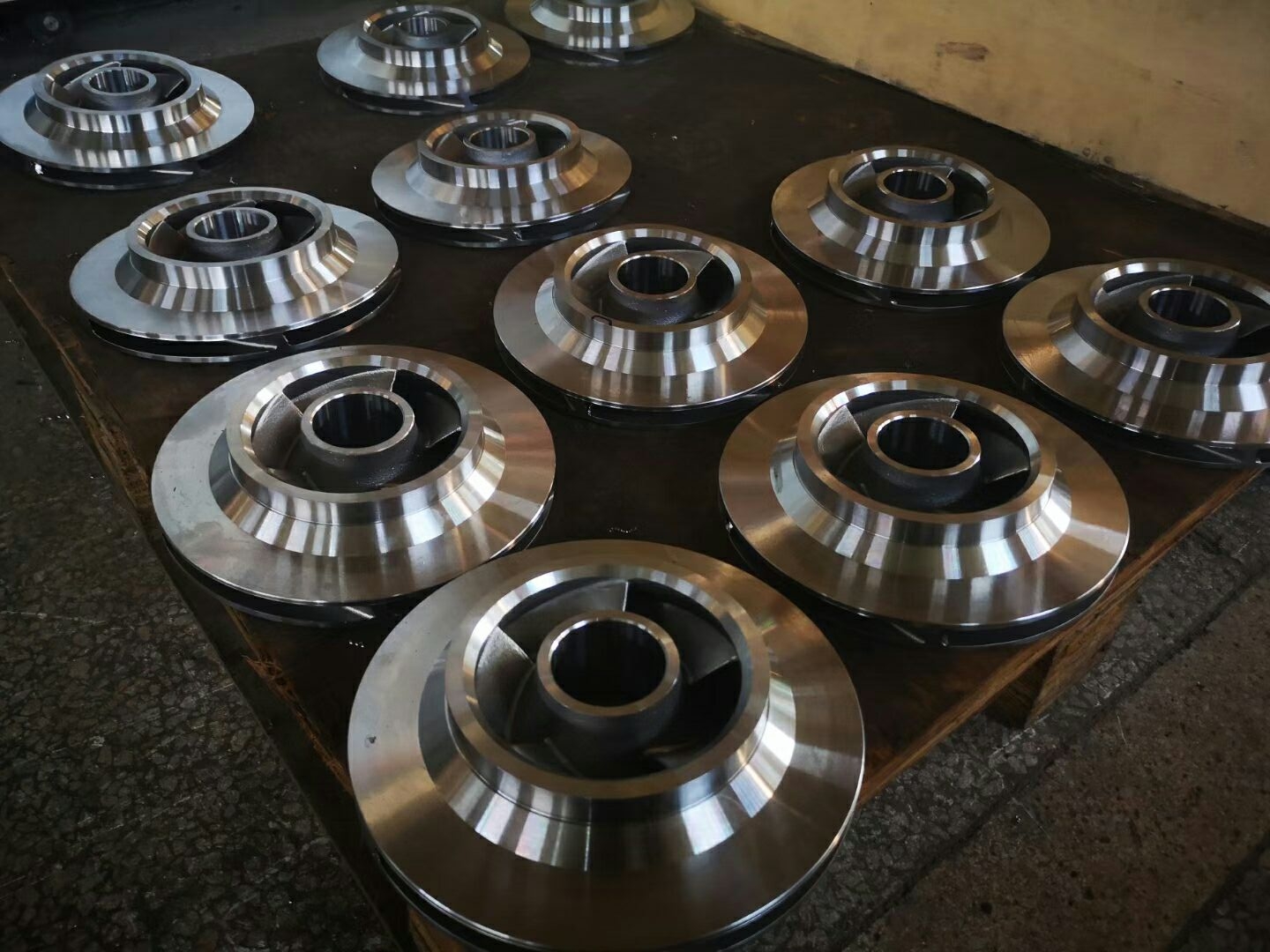

Alloy Castings for Pumps and Valves
I see the strongest demand for alloy casting foundry services in pumps, valves, and fluid handling. Corrosion‑resistant stainless steels, duplex, and high‑alloy materials are standard for:
- Chemical and petrochemical pumps
- Water and wastewater valves
- Oil & gas flow control parts
For these projects, we often supply custom valve and pump castings that are fully machined and pressure‑tested. If you’re in fluid handling, you’ll want a partner with deep experience in valve body and pump casing castings, similar to our work in custom OEM valve bodies and valve castings for industrial systems.
Alloy Castings for Automotive and Transportation
Automotive and transportation customers lean on aluminum alloy casting, ductile iron, and high‑strength steels for:
- Housings, brackets, and suspension parts
- Drivetrain components
- Lightweight structural parts
Here, the focus is on weight reduction, repeatability, and cost‑effective high volumes using sand casting, permanent mold, and sometimes die casting alloys.
Alloy Castings for Power Generation and Energy
In power and energy, our alloy casting foundry work is all about heat resistant alloys and corrosion resistant castings for demanding environments:
- Steam turbine and boiler parts
- Nuclear and conventional power components
- Renewable energy hardware
We routinely support critical energy industry castings, where material traceability, NDT, and certifications are non‑negotiable, similar to the strict standards required in nuclear power castings and components.
Alloy Castings for Mining, Cement, and Heavy Equipment
Mining, cement, and construction equipment need high alloy steel castings and bronze/copper alloys that can survive abrasion and impact:
- Crusher and mill wear parts
- Dragline and shovel components
- Heavy-duty housings and structural parts
Here, the priority is wear life, toughness, and uptime, so we tune alloy grades and heat treatment to match your real‑world conditions.
Alloy Castings for Aerospace and Defense
For aerospace and defense, we support precision metal casting in stainless, nickel‑based, and cobalt alloys:
- Structural brackets and housings
- Turbine and engine components
- High‑temperature, high‑stress parts
These programs need tight tolerances, reliable alloy chemistry, and strict quality control, often using investment casting and advanced NDT to meet demanding specs.
Custom Alloy Casting Projects and Prototyping
When you need custom alloy castings fast—before locking in full production—our alloy casting foundry services are built around speed, flexibility, and clear engineering support.
Low Volume & Prototype Alloy Castings
For U.S. customers, we focus heavily on low volume and prototype alloy castings so you can validate fit, function, and performance without committing to big tooling spends.
We’re a good fit if you need:
- Short-run and pilot batches for pumps, valves, brackets, or housings
- Custom alloy castings in stainless, aluminum, bronze, or high alloy steel
- Near net shape casting to cut down your machining time and cost
Rapid Tooling & Sample Development
We use flexible tooling options to hit your timelines:
- 3D printed patterns and soft tooling for quick samples
- Fast iteration on gating and riser design to improve yield
- Typical first-article samples in weeks, not months
If your prototypes move into CNC work, our team can pair cast parts with precision bronze machining services for tight-tolerance bronze alloy components.
Tuning Alloy Grades for Your Application
Our metal alloy casting team helps you pick and tune alloys based on real-world service conditions, not just spec sheets. We routinely adjust:
- Carbon and alloy content for strength and toughness
- Chromium, nickel, and molybdenum levels for corrosion and heat resistance
- Aluminum and bronze alloys for weight reduction and wear resistance
For extreme conditions, we can also advise on nickel-based alloys using data from our own Inconel alloy selection guide.
Managing Design Changes & Iteration
Prototype work always evolves. We structure projects so design changes don’t wreck your schedule or budget:
- DFM feedback early: wall thickness, draft, and fillets optimized for casting
- Quick updates to 3D models and patterns as your design matures
- Transparent communication on how each design change affects cost, lead time, and casting quality
Our goal is simple: get you from concept to production-ready custom alloy components with as few surprises as possible.
How to Choose the Right Alloy Casting Foundry
Picking the right alloy casting foundry is a business decision, not just a price check. Here’s how I’d evaluate a foundry if I were on your side of the table.
Match Processes to Your Alloy and Part Design
Start with process fit. The wrong process will kill quality, lead time, and cost.
Quick guide: process vs. part needs
| Need / Feature | Best Fit Process (Typical) |
|---|---|
| Large, heavy, rugged parts | Sand casting |
| Tight tolerances, fine details | Investment casting / shell mold casting |
| High volume, repeatable production | Permanent mold casting / die casting |
| Tubes, sleeves, rings | Centrifugal casting |
| Lightweight, complex geometry | Aluminum alloy die casting / investment casting |
Confirm the foundry has:
- Proven experience with your alloy (stainless, aluminum, bronze, nickel, cobalt, etc.)
- Real production history with your part size, weight, and complexity
- Clear DFM (design for manufacturability) support so your part is cast-friendly from day one
Evaluate Alloy Expertise & Metallurgical Support
For serious industrial work, “we can pour that” isn’t enough.
Look for:
- In-house metallurgist or materials engineer
- Ability to recommend alloy selection for casting based on:
- Corrosion / wear
- Temperature
- Strength / impact requirements
- Capability for:
- Heat treatment of alloy castings
- Microstructure analysis
- Failure analysis and root-cause support
If you’re in medical, aerospace, or other high-spec markets, strong metallurgy is as important here as in any precision metal machining work like cobalt-chromium joint components.
Capacity, Lead Time & Scalability
You want a foundry that can grow with you.
Check:
- Typical lead times for:
- New tooling
- First articles
- Repeat orders
- Melt capacity and mold line capacity:
- Can they handle your annual volume?
- Can they ramp up fast if demand spikes?
- Backup options:
- Multiple molding lines?
- Multiple furnaces / alloys in parallel?
Ask them to be specific: monthly capacity, typical on-time delivery rate, and what happens if you double volumes.
In-House Machining & Value-Added Services
A good alloy casting foundry doesn’t just pour metal; it helps you land closer to a finished part.
Ideal in-house capabilities:
- CNC machining of cast parts
- Heat treatment
- Surface finishing (shot blast, coating, passivation)
- NDT (UT, RT, PT, MT) and full inspection reports
- Assembly or kitting if needed
Bundling casting + machining (similar to how we provide machining services for complex metal parts) often:
- Cuts total lead time
- Simplifies supplier management
- Reduces total landed cost
Total Cost, Communication & Long-Term Fit
Don’t chase the lowest piece price alone. Look at total cost:
- Tooling cost + per-part cost
- Scrap and rework risk
- Freight and logistics
- Engineering support time (yours and theirs)
Then judge the relationship:
- Do they answer quickly and clearly?
- Do they push back and suggest better options when needed?
- Are they transparent on problems, delays, and corrective actions?
You want a foundry partner that:
- Communicates like part of your team
- Keeps data and drawings secure
- Can support you from prototype alloy castings through full production and future design changes
Working With vastmaterial as Your Alloy Casting Foundry Partner
Alloy casting ranges and processes at vastmaterial
At vastmaterial, I run an alloy casting foundry built around flexibility. We handle:
- Sand casting for large or heavy-duty alloy castings
- Investment casting for precision metal casting and complex shapes
- Shell mold and permanent mold casting when you need tighter tolerances
- Centrifugal casting for sleeves, tubes, and rings
- Full support for stainless steel castings, heat resistant alloys, aluminum alloy casting, bronze and copper alloys, high alloy steels, nickel based alloy castings, and cobalt alloy castings
If you need downstream finishing, I also support heat treatment, machining of cast parts, and basic surface finishing so parts arrive closer to a near net shape.
Industries and applications we support
Most of our alloy casting foundry services are built around real industrial needs in the U.S. market, including:
- Valve and pump castings for water, chemical, and oil & gas
- Automotive alloy castings and general transportation hardware
- Energy industry castings for power gen, renewables, and process plants
- Mining, cement, and heavy equipment components in high alloy steel or wear alloys
- Aerospace alloy components and defense-related hardware in nickel and cobalt alloys
If you’re not sure which alloy or casting process fits your job, I treat that as an engineering discussion, not a sales pitch.
Project workflow: from RFQ to delivered castings
Here’s how I typically run projects so you know what to expect:
- RFQ and engineering review
- You send 2D drawings and 3D models, specs, and volumes.
- I review for alloy selection, casting feasibility, and basic DFM for cast components.
- Quote and process proposal
- You get a clear quote with recommended casting process, alloy, tooling, and lead time.
- We lock in quality requirements, testing, and any non destructive testing for castings.
- Tooling and sample runs
- Build patterns, dies, or investment casting tooling.
- Produce prototype alloy castings or low volume casting runs for approval.
- Production and delivery
- Stable production with in-process foundry quality control.
- Dimensional checks, NDT, and material certificates included as agreed.
For customers who also need tight machining work, I’ll often coordinate with our internal or partner shops; my approach follows the same quality mindset you’ll see in our testing and quality control practices.
Support after delivery: testing, documents, repeat orders
Working with my alloy casting foundry is meant to be long-term, not one-and-done:
- Testing and reporting
- Mill certs, alloy chemistry, mechanical test results, and NDT reports on request
- Microstructure and failure analysis support when there’s a field issue
- Documentation and traceability
- Heat numbers, process records, and test results kept for traceability
- Support for ISO-style quality systems and customer audits
- Repeat orders and design changes
- Stable lead times and repeatability once tooling is proven
- Fast response on design tweaks, alloy upgrades, and DFM changes to improve cost or performance
If you need a U.S.-focused alloy casting foundry partner that treats engineering, quality, and communication as seriously as price, that’s exactly how I’ve built vastmaterial.
FAQ About Alloy Casting Foundries
Typical lead times for alloy castings
Lead time depends on part complexity, tooling, and process:
| Type of Order | Typical Lead Time (US Market) |
|---|---|
| Simple re-order, existing tooling | 2–4 weeks |
| New part, sand casting tooling | 4–8 weeks |
| New part, investment casting | 6–10 weeks |
| Complex + heat treat + machining | 8–12+ weeks |
I always recommend locking in your forecast early so we can reserve furnace and machining capacity.
Minimum order quantities & small batch runs
We handle everything from prototypes to production:
- Prototype / samples: 1–10 pieces (depending on alloy and process)
- Small batch runs: 20–200 pieces, ideal for engineering builds
- Production runs: Hundreds to thousands of castings per release
If you need low-volume alloy casting runs for validation or spares, we’ll quote it as a custom job and optimize tooling and process so you’re not overpaying.
Best alloys for corrosion & heat resistance
Here’s a simple guide I use with buyers and engineers:
| Need | Recommended Alloy Types |
|---|---|
| General corrosion resistance | Stainless steel castings (304/316 series) |
| Chloride / seawater | Duplex stainless / super duplex |
| High heat (1000–2000°F) | Heat resistant alloys, high alloy steels |
| Extreme heat + corrosion | Nickel based alloy castings, cobalt alloys |
| Wear + corrosion (valves/pumps) | Bronze and copper alloy castings, duplex SS |
For tougher environments, we often move customers from standard stainless to duplex stainless or high alloy steels similar to what’s used in duplex stainless steel products.
Sand casting vs investment casting
| Feature | Sand Casting | Investment Casting |
|---|---|---|
| Part size | Small to very large | Small to medium |
| Surface finish | Medium | Very good / smooth |
| Dimensional tolerance | Moderate | Tight, precision metal casting |
| Tooling cost | Lower | Higher |
| Best for | Large, robust, less cosmetic parts | Complex shapes, finer details |
If you’re cost-driven and can live with more machining, sand casting wins. If you need precision alloy components with sharper features and better finish, investment casting is usually the better call.
How to send drawings & 3D models to a foundry
To quote and manufacture custom alloy castings properly, I need:
- 2D drawings:
- PDF with all critical dimensions, tolerances, surface finish, and notes
- 3D models (strongly recommended):
- STEP (.step / .stp), IGES (.igs), or native CAD (SolidWorks, Inventor, etc.)
- Extra info:
- Alloy grade, annual volume, target pricing range, required certifications (e.g., ISO, material certs, NDT)
Most US customers share files via email, secure cloud link (OneDrive, Google Drive, Dropbox), or their own supplier portal. If you’re not sure how to set the files up for DFM for cast components, send what you have and we’ll walk you through what’s missing.
