Aluminium Bronze Pump Castings Custom Components

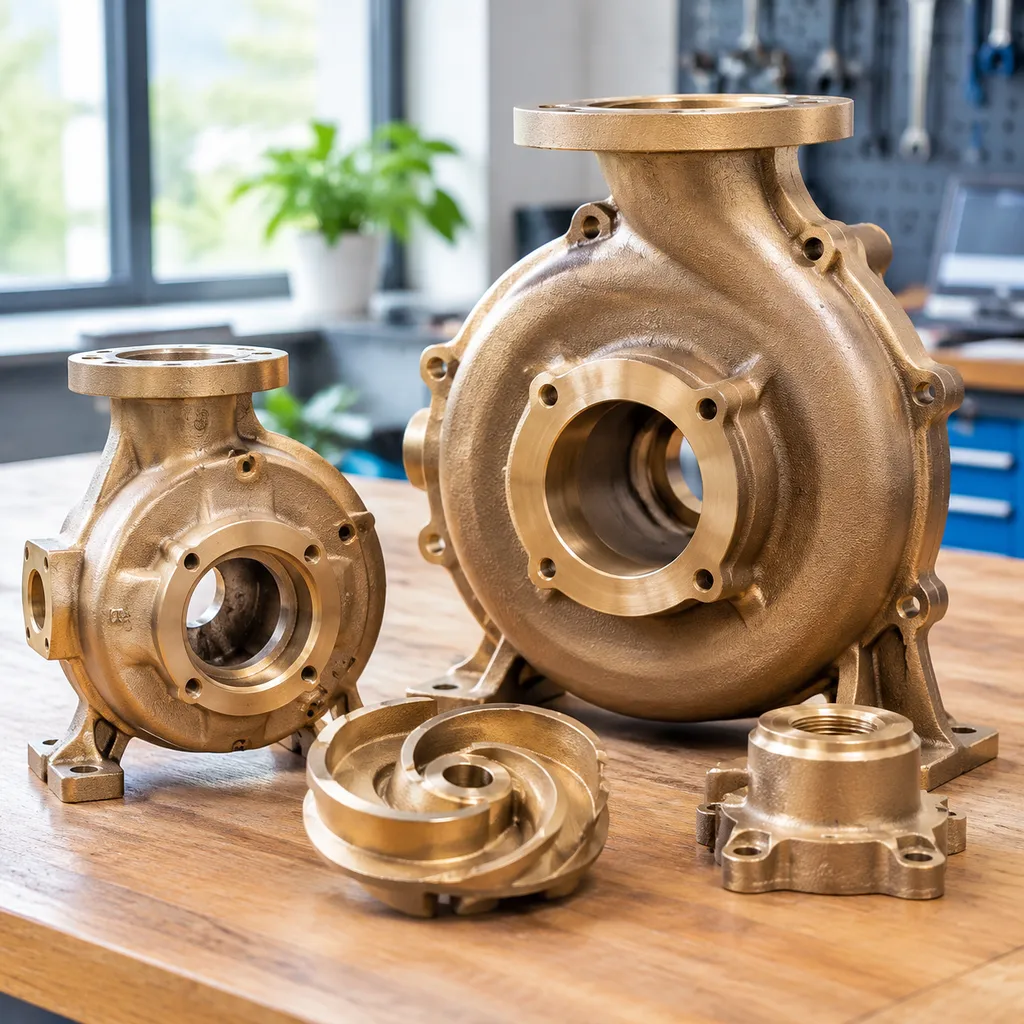

Introduction to Aluminium Bronze Pump Castings

Custom aluminium bronze pump castings provide critical structural integrity and extreme durability for high-demand fluid handling systems. Engineered to withstand harsh chemical, marine, and high-pressure operational environments, these non-ferrous sand castings deliver mechanical reliability where standard bronzes and conventional steels fail.

What Are Aluminium Bronze Pump Castings?

Aluminium bronze pump castings are specialized copper-base alloy components produced through precision sand casting processes, including green sand and chemically bonded (air-set/no-bake) molding. Alloyed with aluminum, iron, and nickel, these castings exhibit mechanical strength comparable to structural and stainless steels.

Typical cast pump configurations include:
Pump bodies, housings, and split casings
Impellers, diffusers, and suction covers
Fluid ends, wear rings, and high-load sleeve bushings

Why Aluminium Bronze Is Ideal for Fluid Handling Systems

Fluid handling infrastructure demands materials that maintain dimensional stability and surface integrity under continuous hydraulic stress, turbulence, and corrosive media exposure. Aluminium bronze delivers a proven combination of physical and metallurgical properties:

• Exceptional Corrosion Resistance: Forms a tough, self-healing aluminum oxide film that resists saltwater, brine, acidic solutions, and industrial chemicals.
• Cavitation and Erosion Protection: Resists localized micro-jet impact and high-velocity fluid wear better than standard austenitic stainless steels.
• Superior Mechanical Strength: Provides high yield and tensile strength combined with heavy load-bearing capabilities and impact resistance.
• Anti-Galling and Low Wear: Delivers excellent metal-to-metal wear characteristics across rotating pump shafts, rings, and dynamic interfaces.
• Non-Sparking and Non-Magnetic: Crucial for safety in explosive, flammable, and magnetically sensitive fluid transfer operations.

Key Properties and Benefits for Pump Applications

Aluminium bronze pump castings are engineered to withstand aggressive fluid handling environments. In high-velocity fluids, abrasive slurries, or corrosive seawater, standard bronze and stainless steels often degrade prematurely. Aluminum bronze formulations deliver a balanced mix of mechanical strength, wear resistance, and long-term durability.

Superior Seawater and Chemical Corrosion Resistance

The non-ferrous casting process produces a dense microstructure that naturally forms a tough, adherent copper-aluminum oxide surface film. If scratched or damaged during operation, this protective layer rapidly self-heals in the presence of oxygen.

• Marine & Brine Service: Outstanding resistance to biofouling, stagnant seawater pitting, and stress corrosion cracking.
• Chemical Handling: Immune to attack from dilute non-oxidizing acids, brackish process water, and aggressive chlorides.
• Material Integrity: Pairing premium aluminum casting alloy grades for high-performance parts with tight foundry controls eliminates internal voids that lead to localized leaching.

High Tensile Strength and Hardness

Aluminum bronze components match the load-bearing performance of high-alloy steels while retaining superior castability:

• High Yield & Tensile Strength: Yield strengths exceed standard bronzes by over 100%, allowing pump engineers to specify thinner walls and reduce total assembly weight without sacrificing pressure ratings.
• Impact and Shock Resistance: High fracture toughness handles abrupt pressure surges, fluid hammer, and cyclic mechanical fatigue.
• Non-Sparking & Non-Magnetic: Provides inherent safety in hazardous fluid pumping, volatile chemical refineries, and explosive transfer zones.

Excellent Cavitation and Erosion Resistance

High-pressure fluid handling generates severe turbulence, localized boiling, and high-velocity bubble collapse. Standard pump impellers and diffusers frequently suffer from micro-pitting and premature erosion failure under these conditions.

• Cavitation Attenuation: The dense atomic structure of aluminum bronze resists the destructive micro-jets generated by collapsing cavitation bubbles.
• Slurry & Particle Erosion: Excellent resistance against high-velocity sand, silt, and entrained solid impingement.
• Extended Service Life: Impellers, casing liners, and wear rings retain their hydrodynamic profile far longer, maintaining optimal pump efficiency and cutting downtime.

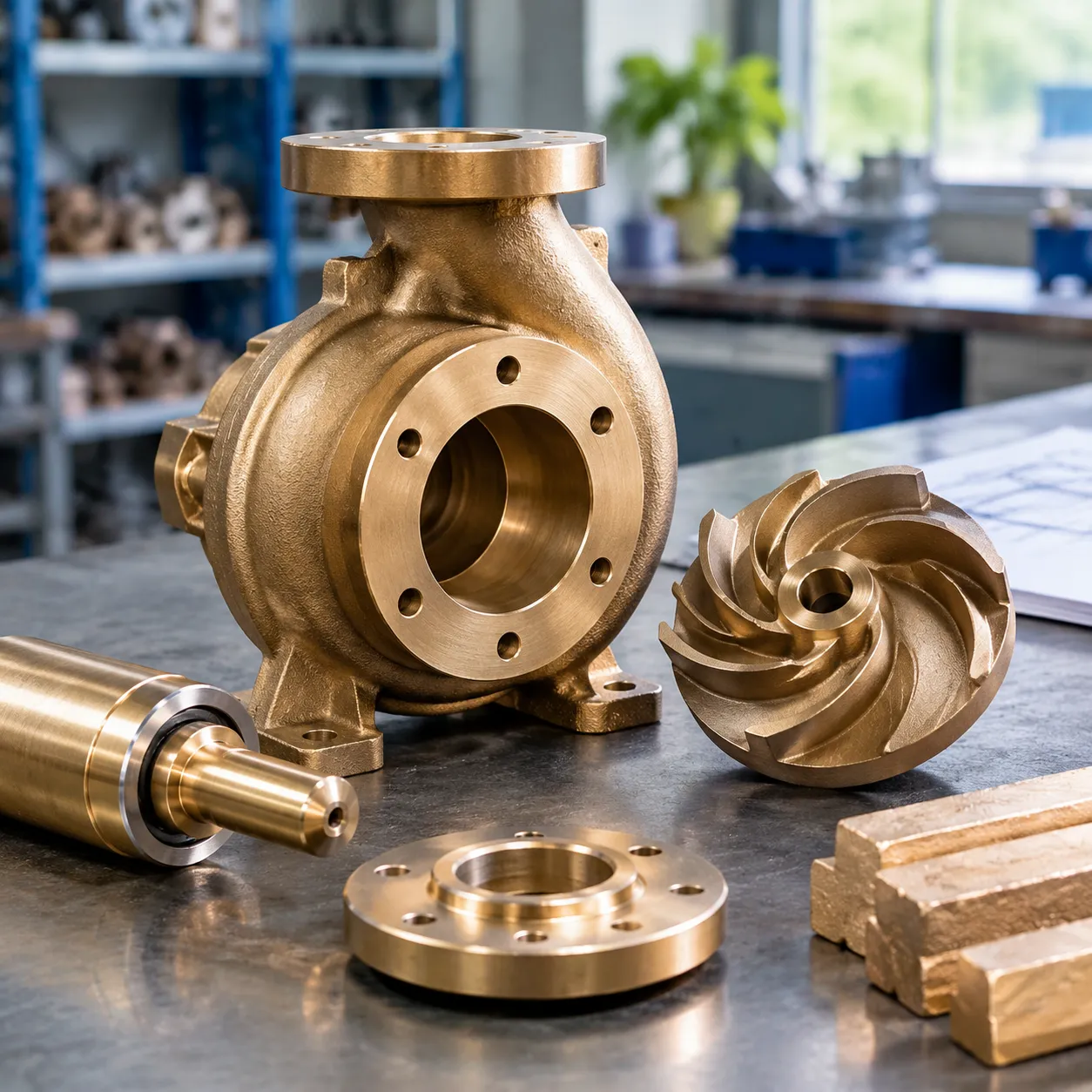

Common Aluminium Bronze Alloys for Pump Castings

Selecting the right alloy composition determines how well pump equipment survives harsh operational conditions. Specific grades are poured to meet chemical, mechanical, and pressure standards. For standard wear resistance or marine-duty protection, choosing the proper aluminum grade for casting ensures aluminium bronze pump castings deliver maximum uptime.

C95400 Aluminum Bronze

C95400, often referred to as 9C, is a widely utilized general-purpose aluminum bronze. It bridges the gap between cost-efficiency and superior mechanical performance.

• Key Strengths: Yield and tensile strength comparable to carbon and low-alloy steels, exceptional impact resistance, and strong galling prevention.
• Corrosion Resistance: Performs reliably in acidic water, mild chemicals, and non-oxidizing environments.
• Typical Pump Parts: Pump casings, suction covers, wear plates, valve components, and intermediate pressure fluid ends.

C95500 High-Strength Nickel Aluminum Bronze

When operating pressures spike and mechanical loads intensify, the C95500 alloy delivers the extra structural integrity required for severe service.

• Key Strengths: Heat-treatable microstructure, exceptional heavy load-bearing capability, and high resistance to wear and cavitation damage.
• Mechanical Toughness: Retains dimensional stability under high continuous stress and cyclic fatigue.
• Typical Pump Parts: High-velocity pump impellers, diffusers, wear rings, and heavy-duty structural pump housings.

C95800 Marine Grade Nickel Aluminum Bronze (NAB)

C95800 is the premier nickel aluminium bronze formulation engineered specifically for harsh marine, naval, and offshore environments.

• Key Strengths: Unrivaled resistance to saltwater corrosion, crevice corrosion, and biofouling.
• Erosion & Cavitation: Forms a robust, self-healing protective oxide layer that resists turbulent, high-velocity fluid flow.
• Typical Pump Parts: Seawater intake volutes, marine pump casings, open and closed impellers, and critical offshore industrial pump components.

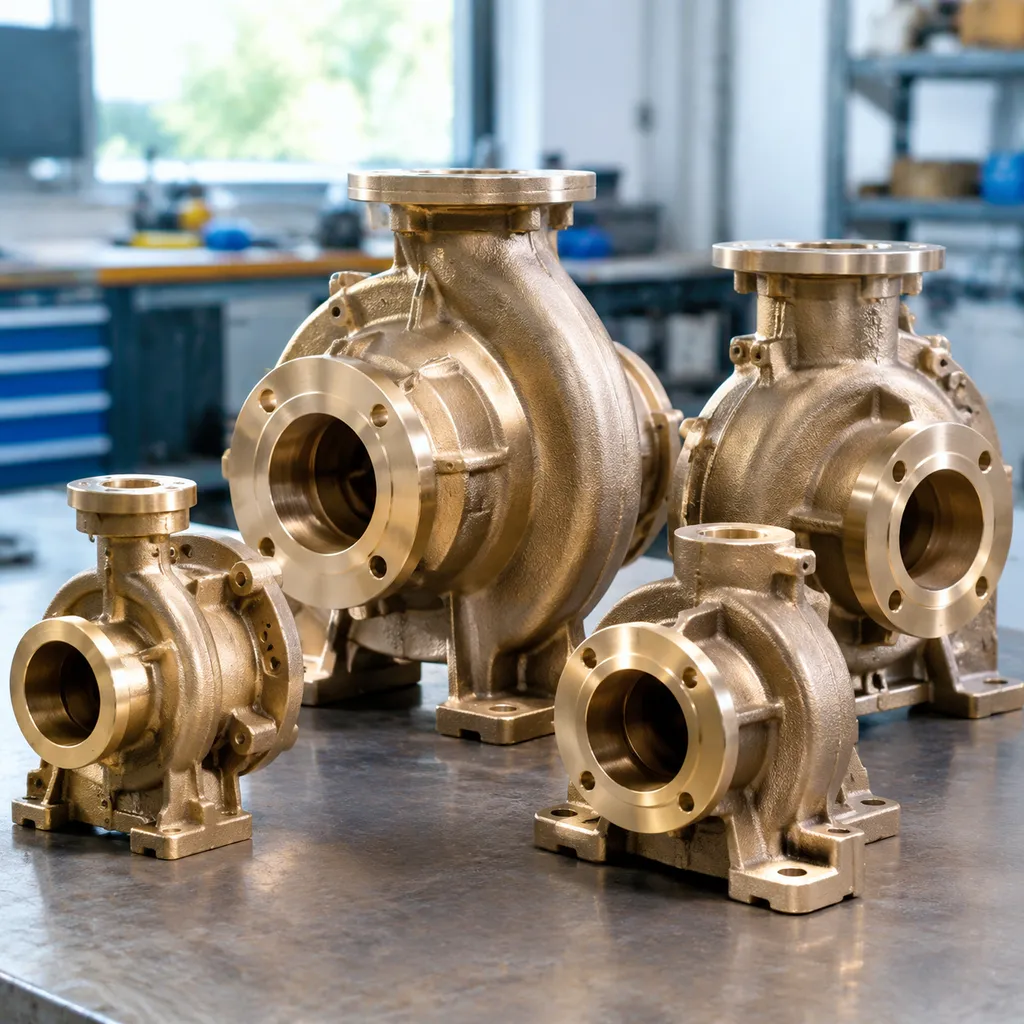

Custom Cast Aluminium Bronze Pump Components

We pour high-integrity aluminium bronze pump castings engineered to endure aggressive fluids, high velocities, and extreme operating pressures. Our foundry utilizes advanced core-making and molding methods to produce geometrically complex, pressure-tight parts tailored to exact OEM specifications.

Pump Casings and Volutes

Pump housings and volutes require structural rigidity, leak-proof integrity, and long-term resistance to erosion. We manufacture single-piece and split casings that handle heavy mechanical loads and turbulent flow:

• Heavy-Duty Housings: Cast from robust alloys like C95500 and C95800 to prevent wall thinning from corrosive media.
• Complex Internal Flow Paths: Precision cored internal water passages and fluid ends ensure optimal hydraulic efficiency.
• Pressure Containment: Engineered to pass rigorous hydrostatic testing without leakage, offering a durable alternative alongside our stainless steel sand casting solutions.

Impellers and Diffusers

Rotating fluid-handling components face continuous cavitation and high shear stress. Our aluminium bronze impellers and diffusers deliver long service lives under severe hydraulic conditions:

• Closed and Open Impellers: Optimized blade profiles minimize turbulence and maintain peak flow efficiency.
• Cavitation Resistance: High-strength nickel aluminium bronze metallurgy prevents surface pitting and mechanical fatigue.
• Dynamic Stability: Dense, porosity-free castings ensure smooth rotation and reduced vibration in high-RPM assemblies.

Shaft Sleeves, Wear Rings, and Bearings

Internal moving parts rely on superior anti-galling and low-friction characteristics to prevent catastrophic pump seizure:

• Wear Rings: Sacrificial and close-tolerance rings that resist abrasive wear and maintain tight clearances.
• Shaft Sleeves: Protect critical drive shafts from corrosive slurry, chemical attack, and localized friction.
• High-Load Bushings and Bearings: Non-sparking, self-lubricating alloy properties withstand heavy radial loads and metal-to-metal contact without galling.

Casting Processes and Manufacturing Capabilities

We utilize advanced foundry techniques to manufacture durable aluminium bronze pump castings built to withstand severe operating environments. Depending on part size, geometry, and mechanical requirements, the casting process-primarily sand casting and investment casting, with centrifugal casting or continuous casting used when drawings call for rings, sleeves, or bar blanks-is selected to ensure structural integrity and pressure tightness across every batch.

Sand Casting for Large Pump Housings

For heavy-duty and large-scale components, sand casting is our primary production method.

• Green Sand and No-Bake Molding: We handle both green sand molding for volume runs and chemically bonded (air-set/no-bake) sand casting for large, heavy-section pump casings and volutes.
• Complex Core Work: Our in-house core-making capabilities allow us to cast intricate internal fluid passages, suction channels, and split-case geometries without sacrificing wall uniformity.
• Wide Weight Range: We produce sand castings ranging from small components under 1 lb up to several hundred pounds, adhering to strict metallurgical standards.

For engineering teams evaluating production methods across alloys, our precision metal casting guide for engineers and OEM buyers provides practical insights into selecting the best molding methods for fluid-handling components.

Investment Casting for Complex Impeller Geometries

When pump designs require tighter dimensional tolerances, thin-walled vanes, and smooth internal flow channels, precision casting provides the needed accuracy.

• Hydraulic Efficiency: Delivers smooth as-cast surface finishes that reduce flow friction and improve fluid dynamics in pump impellers and diffusers.
• Intricate Vane Profiles: Casts complex curved blades and enclosed passages with minimal need for preliminary rough machining.
• Consistent Repeatability: Ideal for producing high-precision, balanced rotating parts from high-strength nickel aluminium bronze alloys.

Precision CNC Machining and Surface Finishing

To deliver ready-to-install parts, we support downstream finishing operations tailored to critical pump interfaces:

• Tight-Tolerance Machining: Precision turning, boring, and milling ensure precise fits for wear rings, shaft journals, and flange faces. Partnering with a dedicated industrial molds company for precision casting and CNC tooling allows us to streamline pattern tooling and tight-tolerance post-machining.
• Surface Cleaning: Standard shot blasting and cleaning remove all surface oxides, preparing the casting for inspection and assembly.
• Heat Treatment & Testing: In-house heat treatment optimizes tensile and yield strength, while hydrostatic pressure testing and non-destructive testing (NDT) verify pressure boundary integrity before shipment.

Key Industrial Applications

We cast high-integrity aluminium bronze pump castings engineered to withstand abrasive fluids, extreme mechanical loads, and aggressive operating conditions. Our sand casting capabilities ensure superior metallurgical structure across critical global industries.

Marine, Naval, and Subsea Equipment

Marine engineering and naval applications demand pump hardware that endures continuous immersion in saltwater without structural degradation. We cast pump bodies, impellers, and suction covers in specialized marine-grade alloys such as C95800.
Seawater Circulation and Ballast Systems: Delivers unmatched resistance to saltwater corrosion and impingement.
Subsea & Naval Hardware: Non-magnetic and non-sparking characteristics satisfy strict naval requirements for sensitive subsea systems.
Cavitation Defense: Protects high-velocity impellers and fluid ends from erosion caused by turbulent flow.

Offshore Oil and Gas Systems

Offshore platforms and floating production facilities operate in demanding environments characterized by high pressures and explosive atmospheres. Our aluminum bronze castings provide robust durability for essential fluid circuits.
Firewater and Deluge Pumps: High tensile and yield strength ensure dependable, immediate activation during emergency cycles.
Seawater Injection Pumps: Resists severe galling, erosion, and heavy metal-to-metal wear in high-pressure fluid ends.
Hazardous Enclosures: Non-sparking material properties maintain essential safety standards around flammable hydrocarbon vapors.

Desalination and Industrial Water Treatment

Desalination and water treatment facilities expose pumping equipment to concentrated brine, dissolved salts, and sanitizing chemicals. While specialized aerospace and chemical environments might review industrial uses and properties of titanium, aluminum bronze remains the workhorse material for large-scale, high-durability brine pumps.
High-Pressure Reverse Osmosis (RO) Pumps: Resists pitting and crevice corrosion in warm, high-salinity media.
Brine Discharge Casings and Diffusers: Prevents rapid wall-thinning caused by abrasive suspended solids in reject streams.
Wear Rings and Bushings: Low-friction surface interaction prevents component seizure during continuous operation.

Chemical Processing and Power Generation

Industrial power generation and chemical manufacturing require fluid components that tolerate acidic compounds, turbulent cooling flows, and high thermal stresses. We supply precision-cast components designed to extend equipment service life.
Acid and Process Chemical Transfer: Resists attack from mild acids and corrosive chemical mixtures.
Power Plant Cooling Water Pumps: Delivers structural strength comparable to stainless steel while preventing micro-fouling and erosion in massive intake volutes.
Heavy-Load Castings: Eliminates stress-corrosion cracking under cyclical pressure loads and demanding thermal duty cycles.

Selecting an Aluminium Bronze Pump Casting Manufacturer

Choosing the right foundry partner ensures fluid-handling components withstand severe pressure, cavitation, and chemical attack. We are Professional Precision Casting and CNC Machining Service Providers, delivering engineered solutions backed by metallurgical support and rigorous process controls.

Material Certification and Quality Inspection Standards

Reliability in fluid-handling systems starts with strict process controls. As an ISO 9001 certified bronze foundry, alloy integrity and dimensional accuracy are verified across every production run through comprehensive quality procedures:

• Spectrographic Chemical Analysis: Verifies exact alloy chemistry for grades such as C95400, C95500, and C95800.
• Mechanical Property Testing: Evaluates tensile strength, yield strength, and hardness to match operational demands.
• Hydrostatic & Pressure Testing: Confirms leak-free integrity for pump casings, volutes, and fluid ends.
• Non-Destructive Testing (NDT): Detects sub-surface flaws to ensure maximum operational safety.

We provide comprehensive casting services with precision machining and quality assurance to guarantee every part meets stringent engineering specifications.

Custom Tooling and Rapid Prototyping

Pump castings require intricate internal geometries and smooth flow paths. We utilize green sand molding and chemically bonded (no-bake) sand casting systems capable of handling complex core work for impellers, diffusers, and housings ranging from under 1 lb up to several hundred pounds.

Our in-house capabilities include pattern design, storage, and maintenance. Through our dedicated rapid prototyping and tooling services for low volume production, we help validate new hydraulic designs, verify dimensional fit, and transition smoothly into full-scale manufacturing.

Requesting a Quote for Custom Pump Castings

Every casting project is evaluated individually to deliver cost-effective manufacturing and dependable lead times. Pricing is determined per RFQ based on key project criteria:

• Part Geometry & Volume: From initial prototypes to medium and high-volume production runs.
• Alloy Selection: Specific aluminium bronze grades tailored for marine, chemical, or high-wear environments.
• Tooling & Pattern Requirements: New pattern creation or adaptation of existing tooling.
• Secondary Operations: In-house heat treatment, shot blasting, and certified non-destructive testing.

Submit your 2D drawings, 3D CAD files, and material specifications to receive a detailed technical quotation from our engineering team.

Submit drawings and alloy requirements for a machining-ready quotation on aluminium bronze pump castings. Contact us to start a project review.
